• Must Utilize CRL Established Criteria for Installing Safe Enclosure
• Choose Your Own Set of Current CRL Stock Products to Install, As Long As Criteria Is Followed
• Provides The “Frameless” Alternative Many Customers Demand

Header-Free Enclosure Criteria

• Must use ½” (12 mm) glass on fixed panel from which the door hinges
• Fixed panel from which the door hinges can’t exceed 22” (559 mm) in width or 84” (2.134 m) in height
• Door can be either 3/8” (10 mm) or ½” (12 mm) glass
• Door width not to exceed 30” (762 mm)

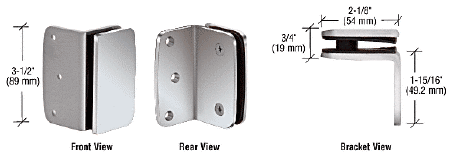

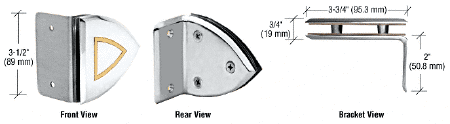

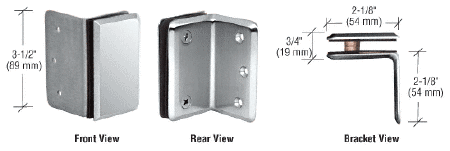

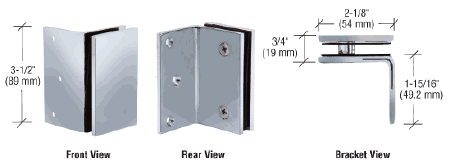

• Must use one type of the following brackets fastened to the vertical wall on the fixed panel from which the door hinges: GE90S, P190S, R090S or CA90S
• The same number of brackets will be used on the wall as there are glass-to-glass hinges
• Only a fixed panel fastened to a vertical wall can be used to hinge from. No hinging from a fixed panel fastened to another fixed panel
• Fixed panel from which the door hinges must have valid bottom support (doesn’t have to be same as bracket noted above)

Contact CRL Technical Sales with any questions
